In the realm of medical safety, the water tightness test specified in EN455-1:2020 (including its amendment A1:2020) stands as a critical line of defense against cross-contamination. As the core evaluation method for determining the “freedom from holes” of single-use medical gloves, this test is not merely a procedural step but a rigorous scientific process that ensures gloves can reliably block the transmission of blood, bodily fluids, and microorganisms during medical procedures. This article delves into the details of the water tightness test, unpacking its types, methodologies, judgment criteria, and significance in upholding medical glove quality.
1. Two Core Types of Water Tightness Tests
EN455-1:2020 defines two distinct types of water tightness tests to balance strict quality control and practical production needs: Referee Testing and Routine Testing. Each serves a unique purpose and follows specific protocols.
1.1 Referee Testing: The “Gold Standard” for Dispute Resolution
Referee testing is the authoritative, standardized methodology outlined in the standard, designed to be the final basis for judging glove integrity—especially in cases of quality disputes, product certification, or regulatory audits. Its procedures are highly detailed and leave no room for ambiguity, ensuring consistency and objectivity across all tests.
Key components of the referee testing setup include:

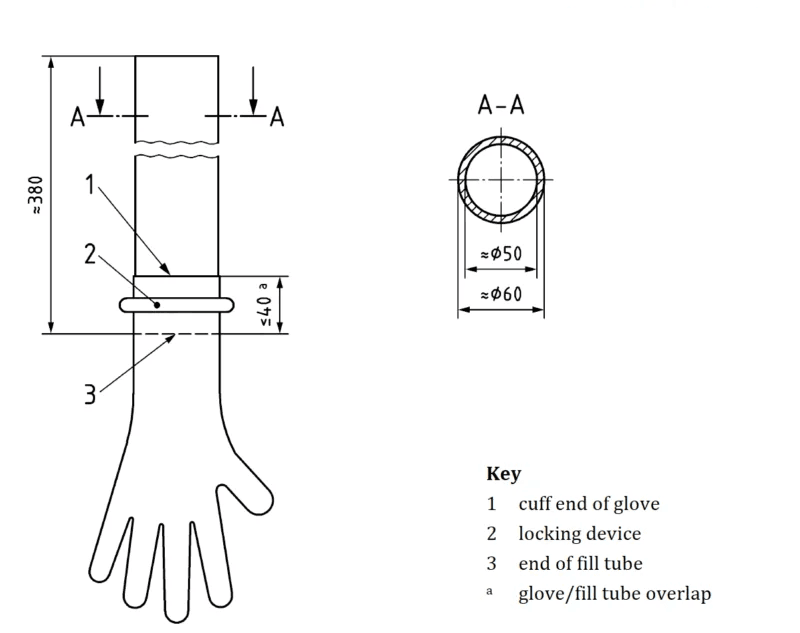

- Filling Tube Specifications: The standard mandates the use of a filling tube with precise dimensions to ensure uniform water injection. Critical dimensions (in millimeters) include a tube end diameter (marked as “≈ϕ50”) for inserting into the glove, a larger diameter section (“=ϕ60”) for stable water flow, and a minimum overlap length (“3”) between the glove and the tube (typically requiring the glove cuff to wrap around the tube securely). A locking device (“2”) is also required to fasten the glove to the tube, preventing water leakage at the connection point during testing.
- Glove Positioning: The glove’s cuff end (“1”) must be tightly secured to the filling tube using the locking device, ensuring no water escapes from the cuff—any leakage here would invalidate the test, as it would not reflect the glove’s own integrity.
- Water Parameters: The test uses room-temperature water (usually 20–25°C) to avoid material expansion or contraction that could alter the glove’s structure. The volume of water injected is specified based on the glove size (e.g., 500 mL for medium-sized gloves), ensuring the glove is fully inflated without overstretching (which might create artificial holes).
After filling, the glove is suspended or held in a stable position for a specified duration (typically 1–2 minutes), and inspectors visually check the entire surface—including fingers, palms, and the back of the hand—for any signs of water seepage, droplets, or streams. Even the smallest water spot is considered a failure, as it indicates a hole that could allow microbial penetration.
1.2 Routine Testing: Balancing Efficiency and Reliability
While referee testing is authoritative, it is time-consuming and not feasible for 100% inspection of large production batches. Routine testing addresses this by allowing manufacturers to use alternative methods—provided these methods are validated to be equivalent to the referee test in detecting holes.
Common validated routine testing methods include:
- Inflation Leak Test: Gloves are inflated with air to a specified pressure, submerged in water, and checked for air bubbles (which indicate holes). This method is faster than the referee test and suitable for high-volume production lines.
- Hydrostatic Pressure Test: A constant pressure is applied to water inside the glove, and pressure retention is monitored—any pressure drop signals a leak. This method is highly sensitive to small holes that might be missed by visual inspection alone.
The standard emphasizes that routine testing methods must undergo rigorous validation: manufacturers must demonstrate, through side-by-side comparisons with referee testing, that their alternative method detects holes at the same or higher sensitivity. This ensures that efficiency does not come at the cost of quality.
2. Step-by-Step Execution of the Water Tightness Test
Regardless of whether referee or validated routine testing is used, EN455-1:2020 requires a structured, documentable process to ensure repeatability and traceability. The key steps are as follows:
- Sample Preparation: Gloves are randomly selected from the production batch according to the standard’s AQL (Acceptance Quality Limit) sampling rules (e.g., AQL 0.65 for surgical gloves, 1.5 for examination gloves). Selected gloves are visually inspected for obvious defects (e.g., tears, discoloration) before testing—any glove with visible damage is excluded, as it would fail the test outright and not represent the batch’s true quality.
- Test Setup: For referee testing, the filling tube is cleaned and checked for blockages; the locking device is verified to function properly. For routine testing, equipment (e.g., air pumps, pressure gauges) is calibrated to ensure accuracy—calibration records must be maintained and made available for regulatory audits.
- Water Injection/Inflation: For referee testing, water is slowly injected into the glove through the filling tube until the specified volume is reached. For inflation-based routine testing, the glove is inflated to the standard’s required pressure (e.g., 2 kPa) and sealed.
- Leak Inspection: The glove is held or suspended in a well-lit area (to enhance visibility) for the required duration. Inspectors examine every surface, paying special attention to high-stress areas like finger tips and thumb creases—these are common locations for micro-holes. For submerged inflation tests, the water is kept still to avoid mistaking ripples for bubbles.
- Result Documentation: Each tested glove is marked as “Pass” or “Fail.” For failed gloves, the location and size of the hole (if visible) are recorded. A comprehensive test report is generated, including references to EN455-1:2020, batch numbers, glove specifications, test dates, equipment used, and individual test results. This report is a mandatory document for regulatory compliance and product traceability.
3. Why the Water Tightness Test Matters: Beyond Compliance
The water tightness test is not just a regulatory requirement—it is a direct safeguard for both patients and healthcare workers. Here’s why its role is irreplaceable:
- Preventing Cross-Contamination: Even a micro-hole (less than 0.1 mm) in a glove can allow the passage of bacteria (e.g., Staphylococcus aureus) or viruses (e.g., hepatitis B virus). The water tightness test ensures that gloves act as an impermeable barrier, reducing the risk of infection transmission during procedures like surgery, blood draws, or wound care.
- Ensuring Consistent Quality: By standardizing the test method, EN455-1:2020 eliminates variability in quality checks. Whether a glove is manufactured in Europe, Asia, or North America, compliance with the water tightness test means it meets the same global standard for integrity—this harmonization is critical for international trade and global healthcare equity.
- Building Trust in Medical Supplies: For healthcare facilities, gloves that pass the EN455-1:2020 water tightness test are a mark of reliability. It gives healthcare workers confidence that their personal protective equipment (PPE) will perform as intended, allowing them to focus on patient care rather than worrying about equipment failure.
4. Future Evolution of the Water Tightness Test
As medical technology advances and new glove materials (e.g., biodegradable latex alternatives, ultra-thin nitrile) emerge, the water tightness test in EN455-1:2020 is likely to evolve to address new challenges. Potential future improvements include:
- Advanced Detection Technologies: Integration of digital imaging (e.g., high-resolution cameras) or sensor-based systems (e.g., moisture sensors) to detect micro-holes that are invisible to the naked eye, enhancing test sensitivity.
- Dynamic Testing Conditions: Simulating real-world usage scenarios (e.g., glove stretching during surgical movements, contact with common medical fluids like saline or disinfectants) to ensure holes do not form under stress.
- Automated Testing Systems: Development of fully automated lines that can perform water tightness tests on hundreds of gloves per hour, reducing human error and increasing testing efficiency for large-scale production.
Conclusion
The water tightness test in EN455-1:2020 is a cornerstone of medical glove safety. Its rigorous protocols, clear typing, and focus on practicality ensure that single-use medical gloves are not just “present” in healthcare settings—but “effective” at protecting lives. As global healthcare continues to prioritize infection control, the role of this test will only grow, adapting to new technologies and needs while upholding the uncompromising standard of “no holes, no cross-contamination.” For manufacturers, regulators, and healthcare providers alike, mastering and adhering to this test is not just about compliance—it is about fulfilling a critical responsibility to patient and worker safety.
